Crux-rev-manual
Technical Specifications
MOTOR
- Engine type : Air cooled, 4-stroke, SOHC, 2valve
- Displacement (cc) : 106
- Starter system : Kick
CHASSIS
- Front suspension system : Telescopic fork
- Front brake : Drum
- Wheels : Spoke
DIMENSIONS
- Overall dim - L x w x h (mm) : 1995 x 735 x 1055
- Seat height (mm) : 780
- Min ground clearance (mm) : 150
TRANSMISSION
- Transmission system : 4-speed
WEIGHT/CAPACITIES
- Dry weight (kg) : 111
- Fuel tank capacity (L) : 11
- Number of seats : 2
WARRANTY
- Manufacturer Warranty : 6 months / 6000 km
- Retail Network : Yamaha
Loading...
Models available
CRUX
CRUX REV MANUAL CRUX
Technical Specifications
MOTOR |
|
| Bore x Stroke (mm) | 49.0 × 56.0 |
| Compression ratio | 9.0 : 1 |
| Cooling system | Air-cooled |
| Displacement (cc) | 106 |
| Engine type | Air cooled, 4-stroke, SOHC, 2valve |
| Fuel delivery | Carburetor |
| Ignition system | CDI |
| Lubrification system | Wet sump |
| Maximum power (hp / rpm) | 5,37 kW - 7.500 rpm |
| Maximum torque (N.m / rpm) | 7,42 Nm - 6.000 rpm |
| Starter system | Kick |
CHASSIS |
|
| Frame | Double cradle type steel |
| Front brake | Drum |
| Front suspension system | Telescopic fork |
| Front tyre | 2,50-18-4PR |
| Rear brake | Drum |
| Rear suspension system | Swingarm |
| Rear tyre | 2,75-18-6PR |
| Wheels | Spoke |
DIMENSIONS |
|
| Min ground clearance (mm) | 150 |
| Overall dim - L x w x h (mm) | 1995 x 735 x 1055 |
| Seat height (mm) | 780 |
| Wheelbase (mm) | 1240 |
TRANSMISSION |
|
| Transmission system | 4-speed |
WEIGHT/CAPACITIES |
|
| Dry weight (kg) | 111 |
| Fuel tank capacity (L) | 11 |
| Number of seats | 2 |
Equipments
EQUIPMENT |
|
| Kick starter | Yes |
| Luggage rack | Yes |
| Spoke wheels | Yes |

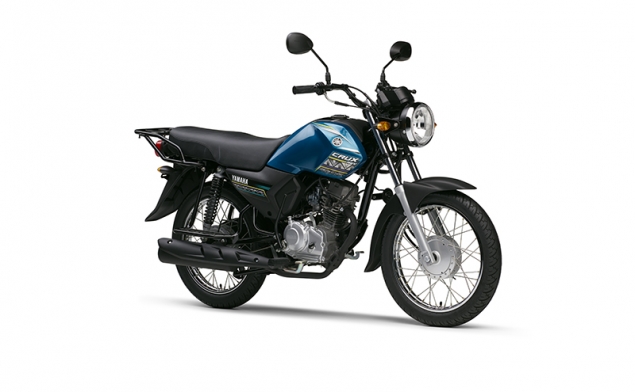

Gallery
Non-contractual images
